Anderer Dämpfer Mod

Hello everyone,



(sorry for my english)

With this trick shocks ss not flee more.

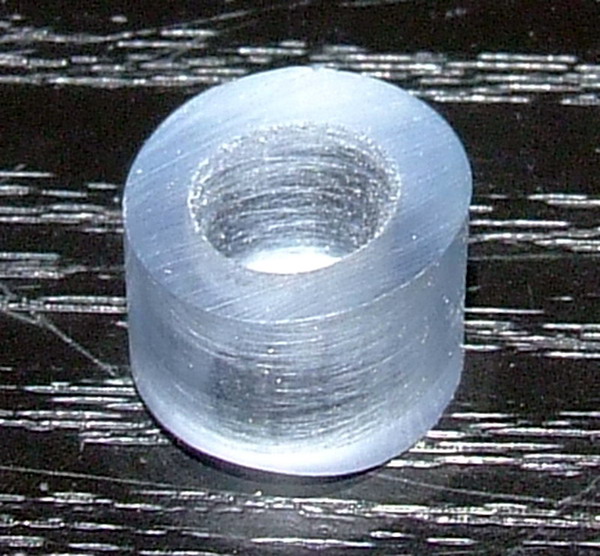

These gaskets are extremely durable PVC.

Prevents wear on the rod 6mm - absorbs shock.

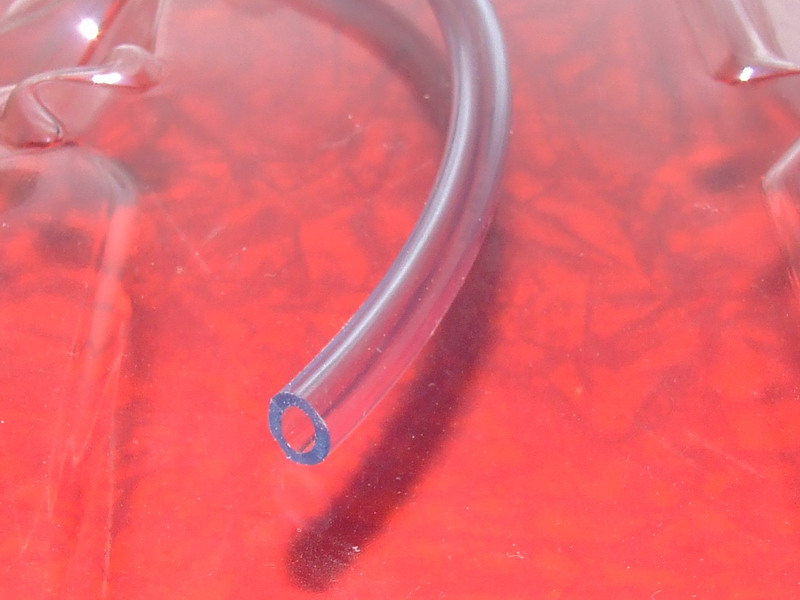

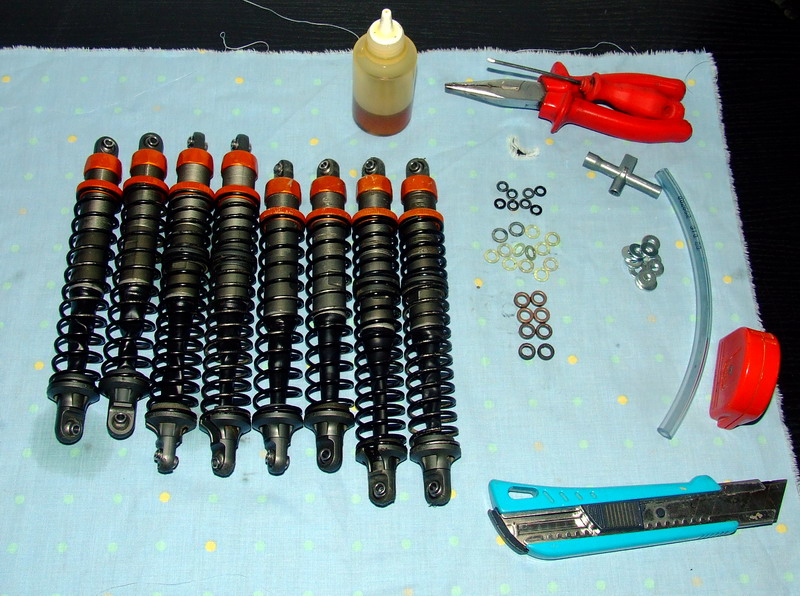

Pvc hose 6-10 mm

🖼 Bild nicht mehr verfügbarThis image has been resized. Click this bar to view the full image. The original image is sized 800x600.

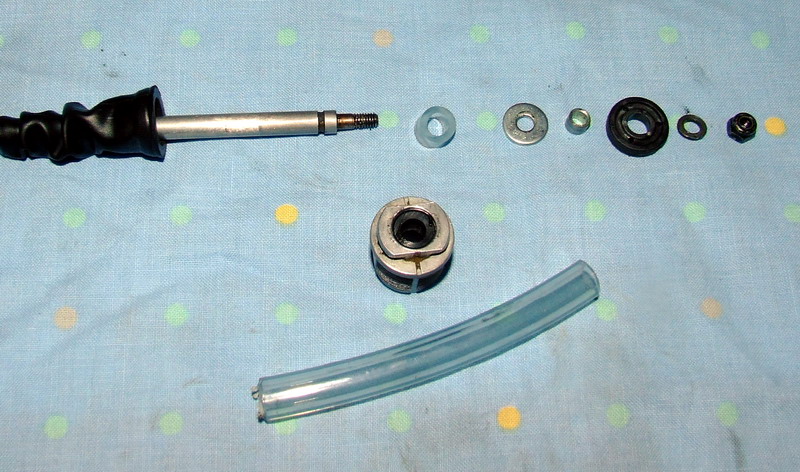

Cut 4x7mm for joints.

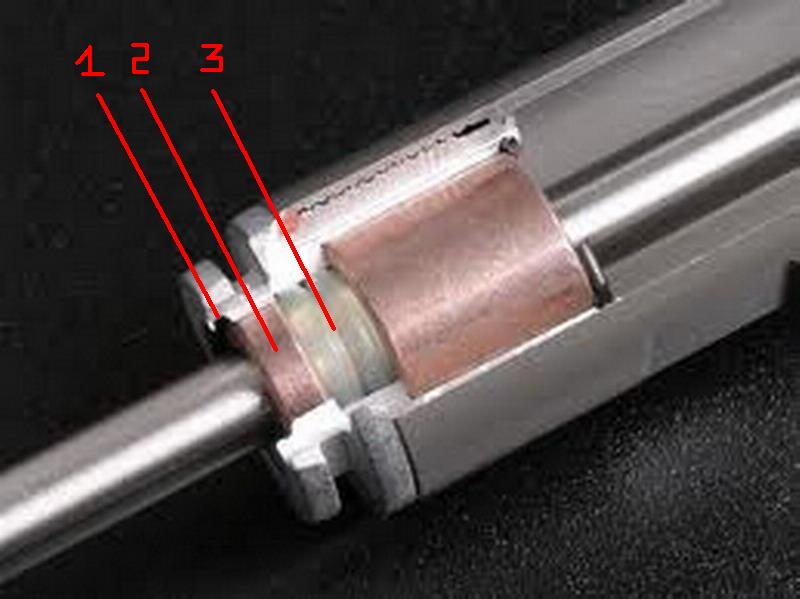

1-Clip

2-bottom guide to remove copper

3-ring seals to eliminate

🖼 Bild nicht mehr verfügbarThis image has been resized. Click this bar to view the full image. The original image is sized 800x599.


-2 and 3 replacing by PVC 6/10 cut to 7mm (no need to cut perfectly straight)

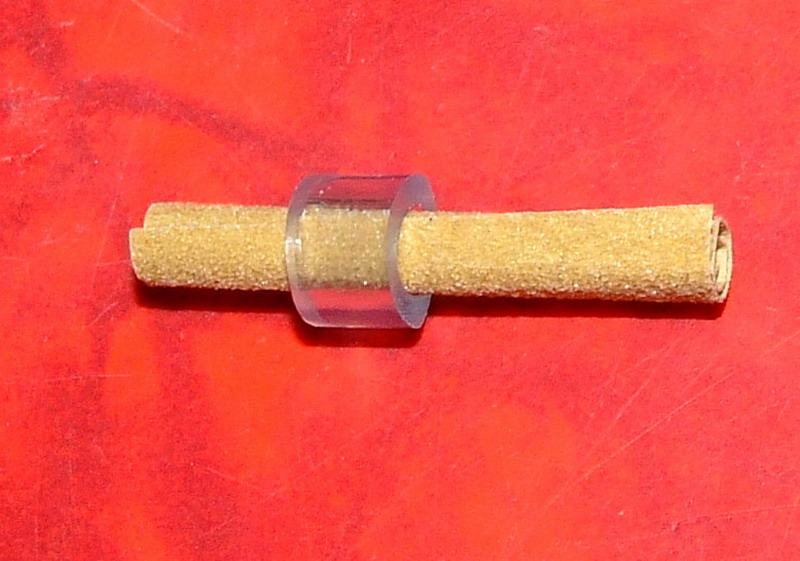

Scratching the inside of the joint laterally 7mm with PP100 to increase oil resistance.

you have to roll the sandpaper and gently into the pipe to avoid
scratching in the direction of the length, let it unfold and then
rotate. 🖼 Bild nicht mehr verfügbarThis image has been resized. Click this bar to view the full image. The original image is sized 800x561.

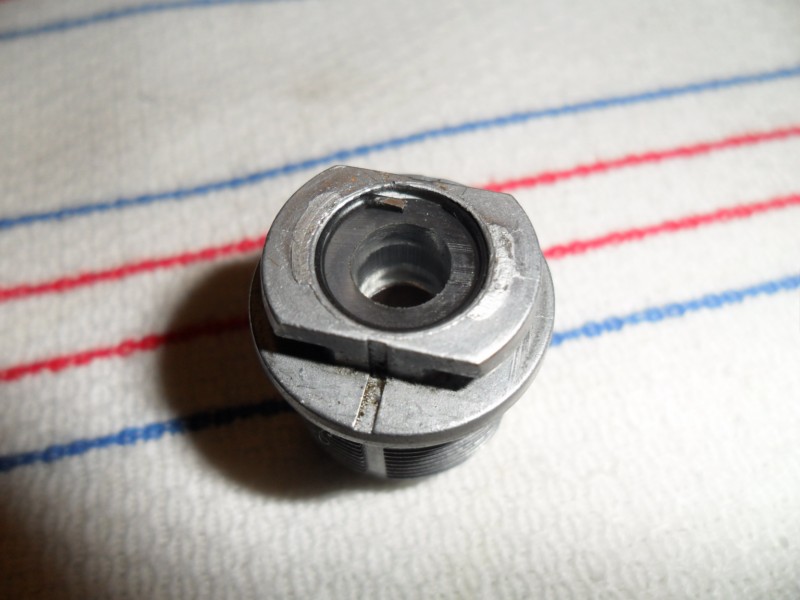

Encase the joint-7mm

-Put the clip.

Seal up 🖼 Bild nicht mehr verfügbarClick this bar to view the small image.


🖼 Bild nicht mehr verfügbarThis image has been resized. Click this bar to view the full image. The original image is sized 800x600.

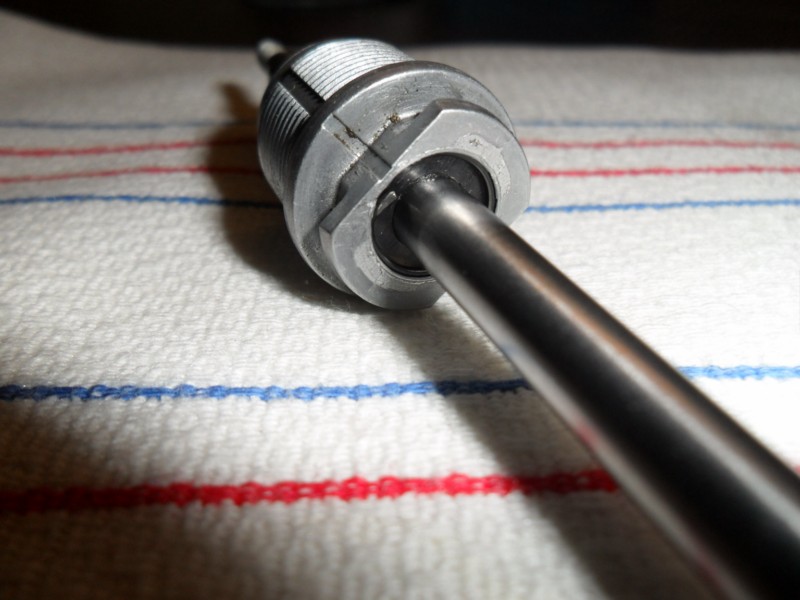

To snap the rod 6mm in the joint must be pushed by rotating.

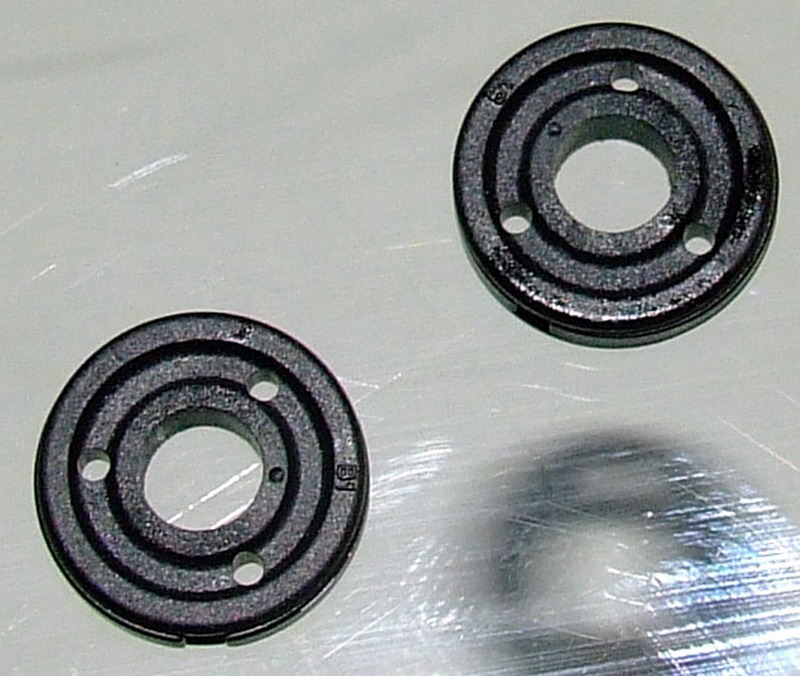

Ar withholding oil. 3holes - av 2holes - complete with oil 15-40w cart 20w or other index

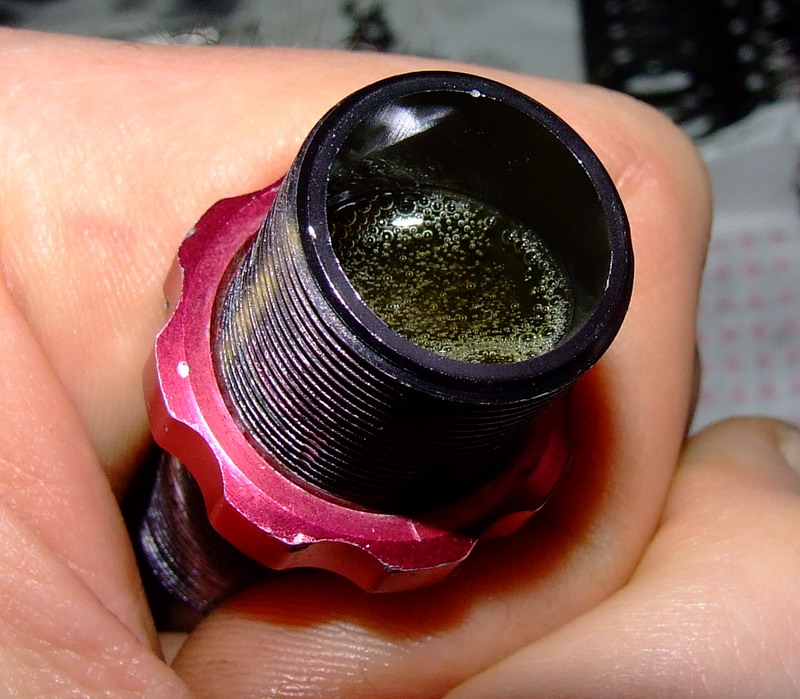

Fill from the top (cap) leave a 1cm gap, the bubbles need to purge

Up and down the rod to gently circulate the oil and get the right level. 🖼 Bild nicht mehr verfügbarThis image has been resized. Click this bar to view the full image. The original image is sized 800x699.






__________________________________________________ _________________________



2. Retainer 6mm rod and pvc 6-10 ...

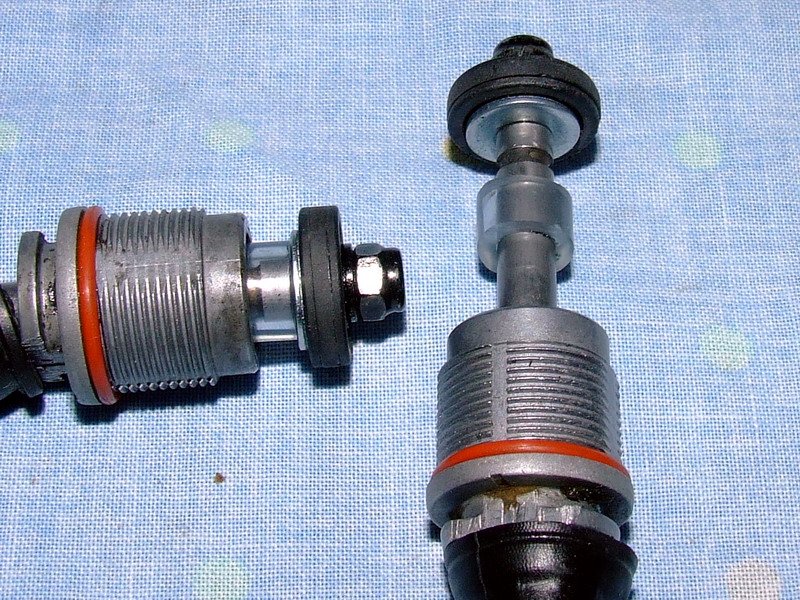

-Place a piece of 1cm or 1/2cm on stem 6mm to avoid hammering the small retaining washer oil

rebound damping, belittles the baja to reduce constraints on gimbals & nuts



🖼 Bild nicht mehr verfügbarThis image has been resized. Click this bar to view the full image. The original image is sized 800x676.


🖼 Bild nicht mehr verfügbarThis image has been resized. Click this bar to view the full image. The original image is sized 800x472.


🖼 Bild nicht mehr verfügbarThis image has been resized. Click this bar to view the full image. The original image is sized 800x600.


🖼 Bild nicht mehr verfügbarThis image has been resized. Click this bar to view the full image. The original image is sized 800x596.




• Some small leaks may occur with the use bash hard due to high lateral
forces exerted on the rods ar., but this limited to a few drops on an
afternoon

sorry mit unterlegscheiben unter den shims ist die Dämpfung doch völlig anderes

Ich wüsste auch nicht wo das Öl hin soll, wenn ich die Kolbenplatte verschließe.
Und dieses PVC ist sehr "starr", sprich einen hohen Shorewert. Es legt sich nicht an die Kolbenstange an und begibt sich nicht wieder in die Ausgangslage, wenn es mal verformt wurde.
Da ist der "MightyMod" (Möter+Nighty) Dämpfermod eher das NonPlusUltra

Denke auch das da wieder ein Schlaumeier versucht hat schlauer wie die schlausten zu sein

Schweinchen Schlau eben...
